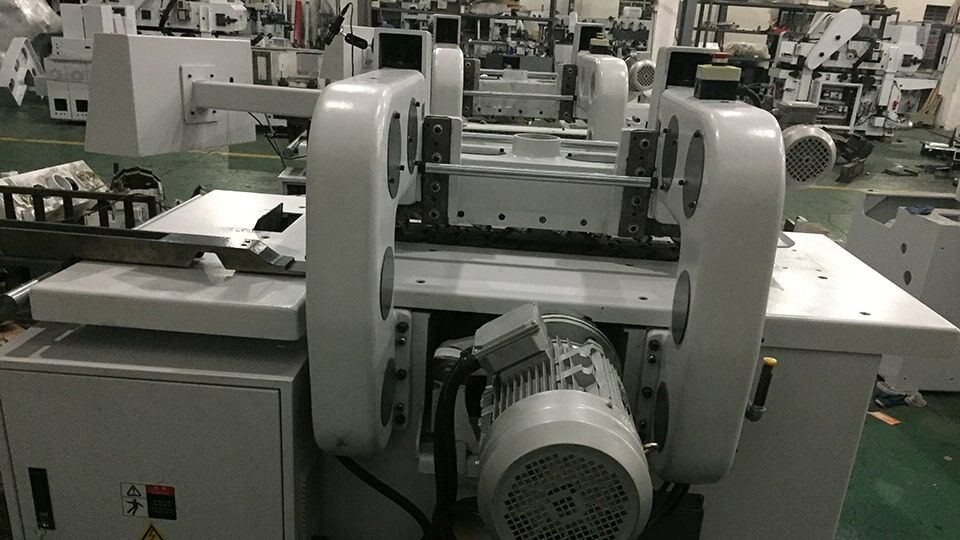

MJ163A

The single rip saw machine for wood guarantees high performance standards while having the smallest working dimensions in its class.
Inquiry

MJ163A Rip Saw Machine purposely created for craftsmen and companies looking for user-friendly, customized production and flexible solutions in a limited space. Its main use is for high-precision wood processing such as solid wood cutting, jigsaw, seaming, trimming, sawing and planning.

Specification

ModelMJ163AMJ164A
Saw blade diameter305mm(12'')~355mm(14'')355mm(14'')~455mm(18'')
Max.working thickness90mm110mm
Cutting width500mm660mm
Spindle rotation speed3000r/min3000r/min
Spindle diameter50.850.8
Feeding speed10-30m/min10-30m/min
Feeding motor power1.5kw0.75kw
Main motor power7.5kw11kw
Press roll lifting motor power0.37kw0.37kw
Working table size1800x985mm2000x1160mm
Dimension2060x1500x1350mm2300x1700x1450mm
Net weight1450kg1740kg

Features

  • IN-HOUSE MANUFACTURING OF THE MACHINE BODY

Heavy-duty cast iron table.

Hard chrome-plated table for maximum wear resistance.

Ruggedly constructed sheet metal frames for durability usage.


  • QUALITY AT VERY COMPETITIVE PRICES

The production, using a dedicated internal structure allows a total control on the machine, in addition to its placing on the market at highly competitive prices.


  • KEEP WORKERS SAFE

Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.


  • WORKING WIDTH 660MM WITH VARIABLE FEED RATE

The variable feed speed enables the machine to meet different requirement of work.


  • PERFECT AND EFFICIENT PROCESSING EFFECT

Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.

Precision built saw head ensures accuracy for straight line rip saw operations.

Four pressure rollers for precise cutting of large and small workpieces.


  • TESTS BEFORE DELIVERY

Machine carefully and repeatedly tested, before delivery to the customer (even with its cutters, if made available).



Detail

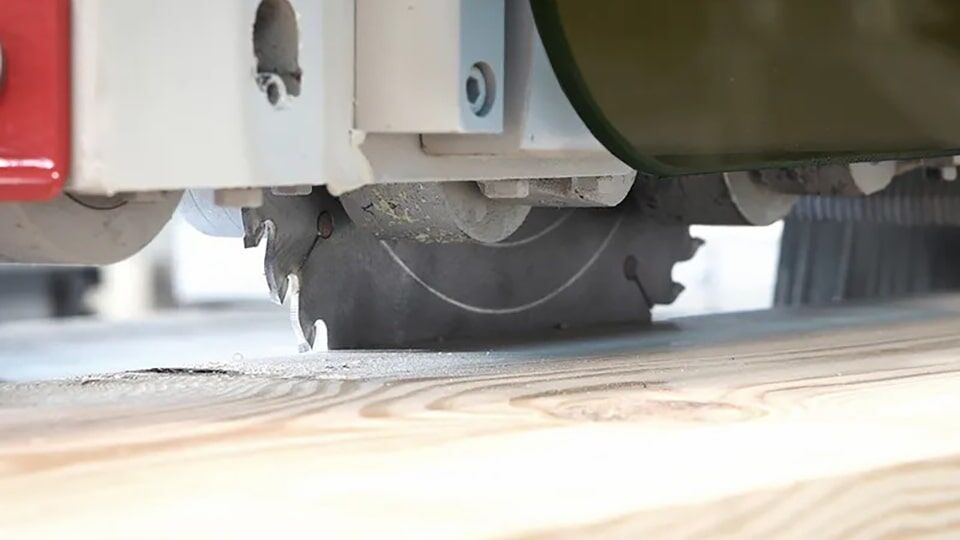

machine details (3).jpg

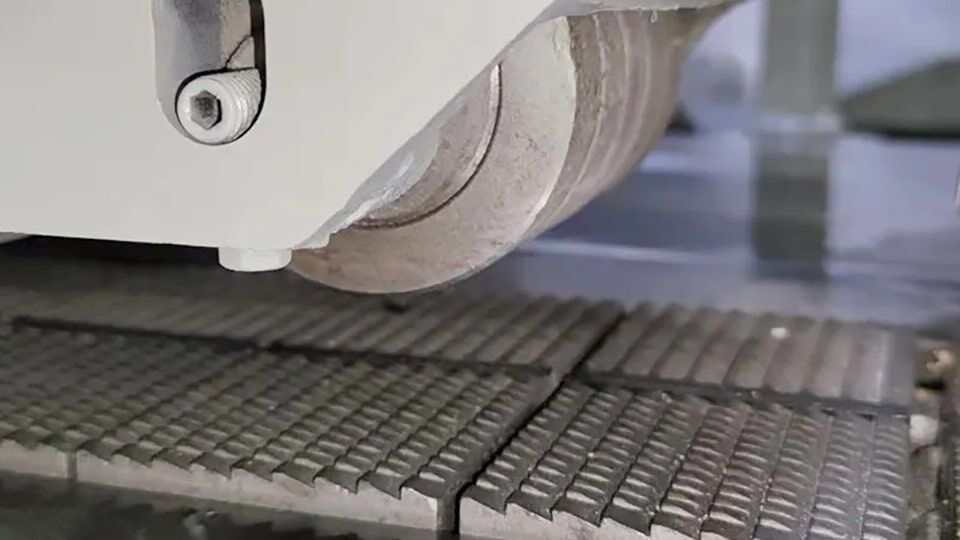

machine details (4).jpg

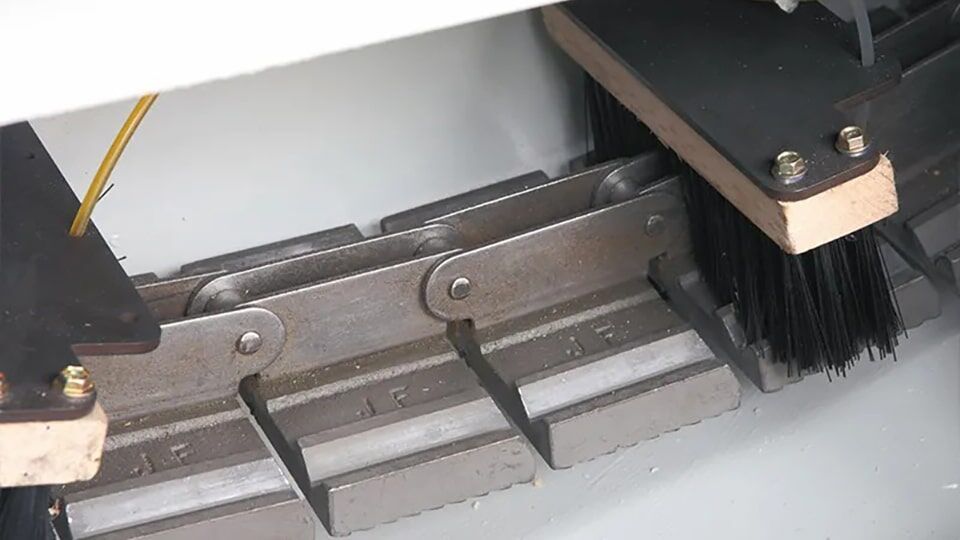

machine details (2).jpg

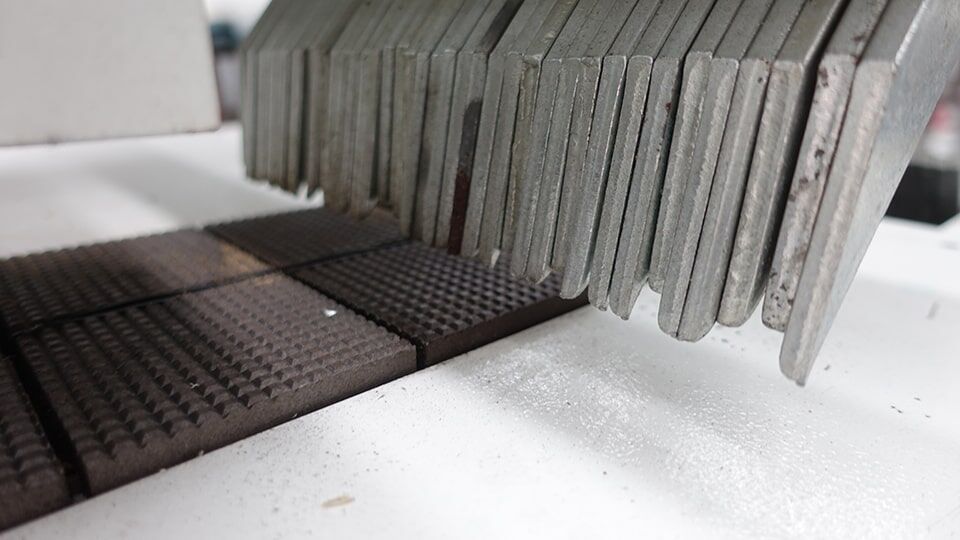

machine details (1).JPG






Previous:MJ143A
Next:MJ153A

Related recommendations

Excellent service and competitive price

FAQ

Frequently Asked Question

Do you have machine in stock?How long about your delivery time?

  • It depend on your interested machine model, quantity and your local voltage, please kindly inform us.
  • We will check the delivery time with our own factory engineer for you.

What's the shipping cost?

  • It depend on your destination port and interested model,please kindly inform us.
  • We will check with our freight forwarder for you.

Do you have technical,operation and maintenance manual? Yes. Of course.

  • Each of our models have these manual.
  • Electric version will be provided online for reference.
  • Paper version will be packed with machine before shipment.

How long is your warranty?

  • Guarantee time is one year, except easy-wearing parts.
  • Provide the free spare part during the period apart from man-fault.
  • 24 hours online service.

How to install the machine?

  • Installation very easy.
  • Detailed installation manual and video will be provided
  • 24hours online service to provide the technical support of installation.
