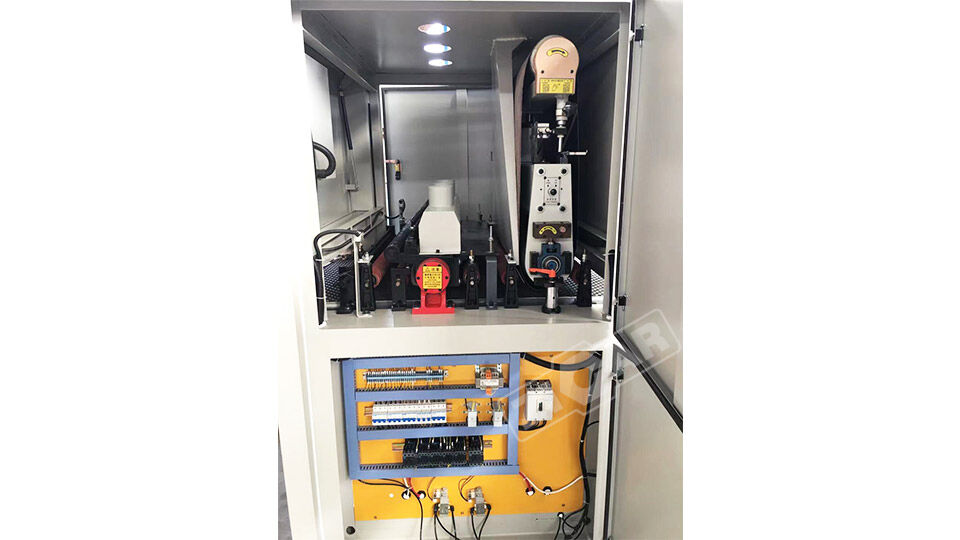

B-R Series (Planer Sander)

Industrial wood sanding machine with versatility and high performance standards.

Inquiry

Specification

Model	B-R630	B-R1000	B-R1300
Max working width	630mm	1000mm	1300mm
The shortest processing length	300mm	300mm	400mm
Max processing thickness	200mm	200mm	160mm
Conveyor speed	6-30m/min	6-30m/min	6-30m/min
Total power	24.37kw	28.75kw	56.55kw
First frame motor power	11kw	11kw	22kw
Second sand frame motor power	11kw	15kw	30kw
Conveyor motor wattage	1.5kw	2.2kw	4kw
Lifting motor power	0.37kw	0.37kw	0.55kw
First sand shelf planing roller diameter	127mm	127mm	180mm
Second sand roller diameter	190mm	190mm	240mm
Abrasive belt size	650*1920MM	1020*1920MM	1330*2200MM
Working pressure	0.6Mpa	0.6Mpa	0.6Mpa
Dust collection	8000m³/h	8000m³/h	12500m³/h
Outline dimension	2350x900x2200mm	2350x1300x2200mm	2800x2300x2200mm
Weight	1900kg	2200kg	4000kg

Features

Stability	1. The machine body is welded by steel plates, and has been quenched to make the stability stronger. Imported conveyor belts are used for good reliability and durability.
	2. The whole series adopts beam barrel and beam seat split structure, which has good stability and convenient maintenance.
	3. Belt cylinder is made of cast iron, with strong tension and good stability.
	4. Conveyor belt adjustment cylinder adopts 63*20 cylinder, which has great strength and good stability
	5. The head of the active roller is thickened and quenched to ensure stability and robustness
	6. The thickness indicator adopts light sensor head, which has high accuracy and good stability in various complicated environments.
	7. Using original imported frequency converter, sensitive and reliable action, high stability
Convenience	1. Adopt advanced interpersonal interface and digital display, and have worktable lifting preset function to make the operation more convenient
	2. The feeding power of the equipment adopts a frequency conversion installation device, which has high precision and fast and efficient work.
	3. The conveying speed is digitally displayed and can be adjusted at will according to different requirements
	4. Adopt the imported combined sand frame, the process of first planing and second sanding and then polishing, high efficiency and energy saving
Safety	1. Multiple safety device design, safe and reliable. Effectively ensure the safety of personnel and machinery while working, saving work manpower,
Safety	2. The casting stop device is used to prevent the plate from rebounding and hurting people during the processing process

Detail
